Textolite Laminate Sheet

for Textolite Laminate Sheet.

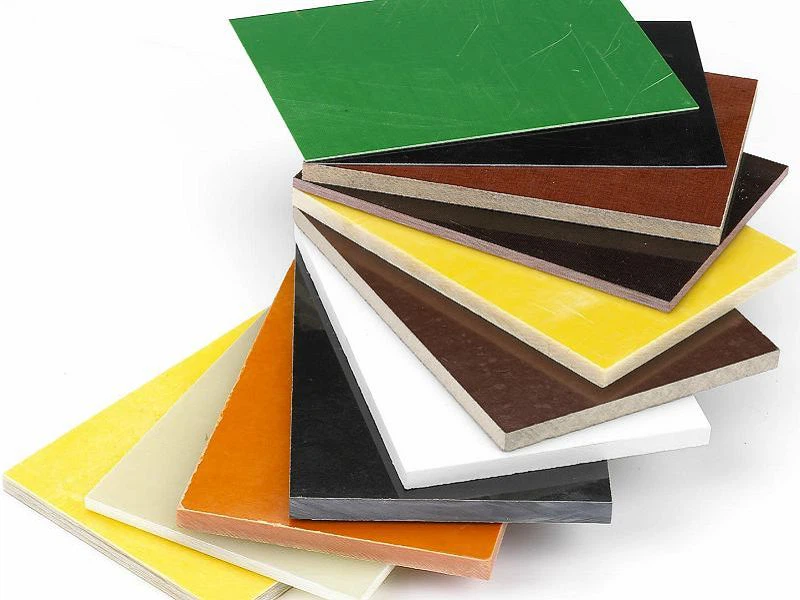

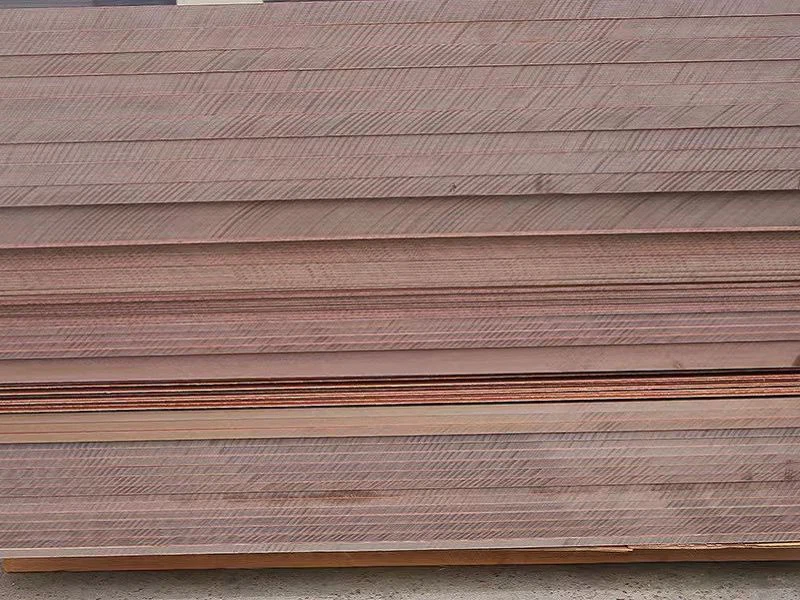

Textolite Laminate Sheet Introduction

Textolite laminate sheet is a type of composite material made from layers of cellulose paper or fabric with thermosetting resin, cured under heat and pressure. It is a versatile and durable material with excellent mechanical, electrical, and thermal properties, suitable for various applications in industries such as electrical, mechanical, and automotive engineering.

Product Properties

The following are the key properties of our Textolite laminate sheet:

1. Electrical Insulation - Textolite laminate sheet has high dielectric strength and low dielectric constant, making it an excellent electrical insulator for high-voltage applications. It is resistant to arc tracking and corona discharge and can withstand high temperature and humidity.

2. Mechanical Strength - Textolite laminate sheet has excellent tensile, flexural, and compressive strength, making it ideal for structural and load-bearing applications. It is also resistant to impact, wear, and abrasion, making it durable in harsh environments.

3. Thermal Stability - Textolite laminate sheet can withstand high temperatures without deformation or degradation, making it suitable for high-temperature applications. It also has low thermal expansion and good thermal conductivity, making it useful for heat transfer applications.

4. Chemical Resistance - Textolite laminate sheet is resistant to most chemicals, including acids, alkalis, and solvents, making it ideal for harsh chemical environments.

5. Machinability - Textolite laminate sheet is easy to machine and can be cut, drilled, and shaped to fit various applications.

Applications

The following are some of the applications of our Textolite laminate sheet:

1. Electrical Insulation - Textolite laminate sheet is commonly used as an electrical insulator in high-voltage transformers, relays, switchgear, and other electrical equipment.

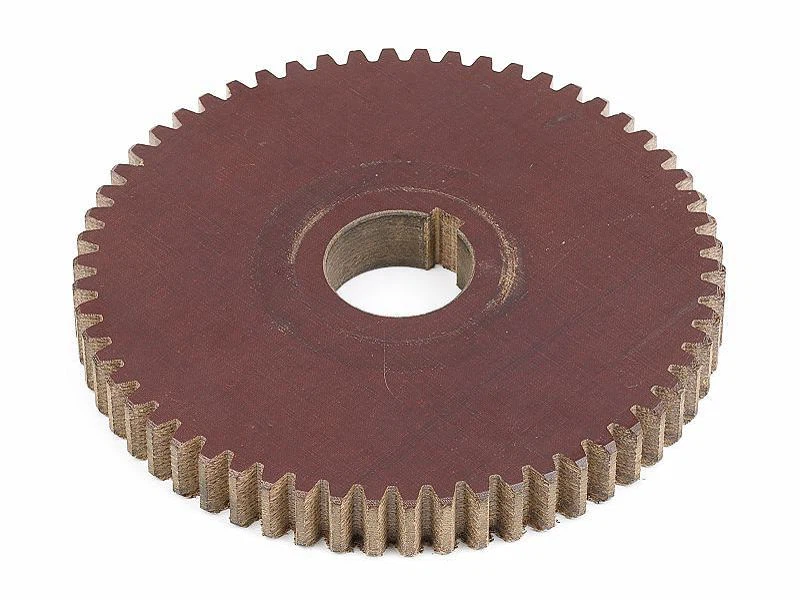

2. Mechanical Engineering - Textolite laminate sheet is used in various mechanical applications, such as gears, pulleys, bearings, and bushings, due to its excellent mechanical properties.

3. Automotive Engineering – Textolite laminate sheet is used in the manufacturing of car body parts, engine components, and electrical systems.

4. Medical Equipment - Textolite laminate sheet is a commonly used material in medical equipment due to its resistance to chemicals and high temperatures making it an ideal material for autoclave trays and sterilization equipment.

5. Chemical Industry - Textolite Laminate Sheet is used in atmospheric exhaust systems, chemical storage tanks and chemical processing equipment. It is also used in laboratory furniture due to its chemical resistance and durability.

Packaging and Shipping

We take great care in packaging and shipping our Textolite laminate sheet to ensure that it arrives at its destination in perfect condition. We use standard export packaging, including wooden crates or pallets, stretch wrap and strapping, to protect the product from moisture, dust, and damage during transportation. We also provide shipping services via sea or air freight to customers in countries outside of China.

Conclusion

Textolite laminate sheet is a highly versatile and durable material with excellent mechanical, electrical, and thermal properties. It is suitable for various applications in industries such as electrical, mechanical, automotive, medical equipment and chemical engineering. We welcome you to contact us today for more information and to discuss how our Textolite laminate sheet can meet your specific requirements.

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

Phenolic cotton cloth laminate sheet 3025 / 3026 /3027.

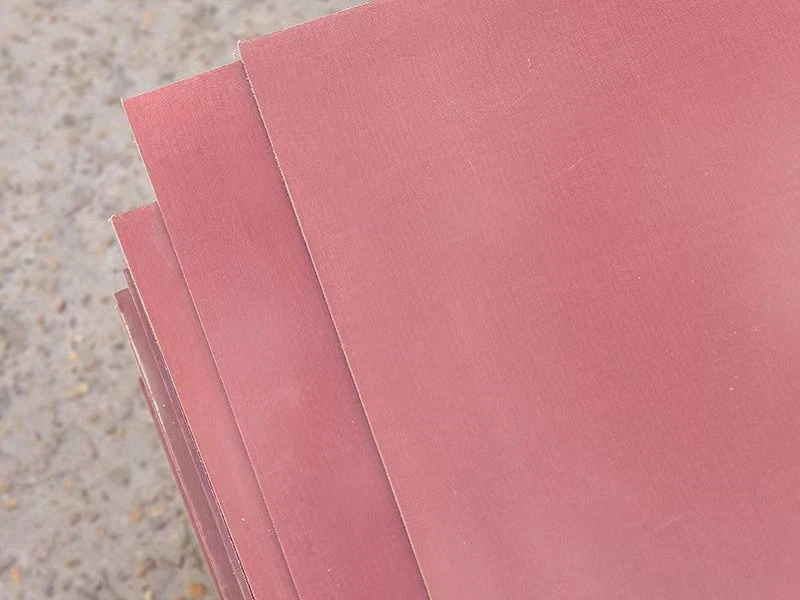

Phenolic cotton cloth laminated sheet 3025 is made of coarse cotton cloth impregnated phenolic resin by processing under heat and pressure.

heat resistance grade: E grade.

3025 (Meet the JB886-75 standard) has high machinery properties, and oil resistance, dielectric properties. suitable to apply to equipment, generator, electrical appliance used as insulation constructure parts, also can be used in transformer oil.

3026 ( meet the JB1679-75 standard) can be used as anti-seismic parts in the big equipment.

3027 (meet the JB2182-77 standard).

Technical requirement:

1. surface: surface should be smooth, not allow any impurities or obvious defect. slight scratches and allowed. The edge should be cut neatly and the section should be free of any delamination or cracks.

2. No cracks are allowed after machining ( or layering after punching not allow) and slag not allow.



3025 PHENOLIC COTTON CLOTH LAMINATED SHEET
Serial number	Properties		Unit	Grade
	1000mm*2000mm			3025
1	Flexural strength perpendicular to laminations	≥	MPa	90
2	Tensile strenght	≥	MPa	50
3	Parallel shear strength	≥	MPa	35
4	Bonding strength	≥	N	5500
5	Dielectric strength Perpendicular to Laminations (in 90±2°C transformer oil, 1.5mm-2mm in thickness)	≤	MV/m	2
6	Breakdown voltage parallel to Laminations (in 90±2°C transformer oil,1.5-2mm)	≤	KV	1
7	Insulation Resistance after impregnated in water	≥	Ω	1.0×106
8	Density		g/cm3	(1.45-1.5)
9	Color		-	Brown
10	Impact strength(Charpy)	≥	KJ/m2	7.9
11	Water absorbability(D-24/23, 1.6mm in thickness)		Mg	296



Minimum order quantity requirement

500kgs
