Phenolic Cotton Fabric Laminate Sheet

Phenolic Cotton Fabric Laminate Sheet is a type of composite material that is widely used in various industries due to its excellent electrical, mechanical, and thermal properties. It is made by impregnating layers of cotton fabric with phenolic resin and then subjecting it to heat and pressure to form a hard, durable, and versatile material.

As a manufacturer located in China, we at [Company Name] take pride in producing high-quality Phenolic Cotton Fabric Laminate Sheets that meet the international standards of quality and performance. Our products are widely used in industries such as automotive, electrical, aerospace, construction, and consumer goods, among others.

Here are some aspects that you should know about Phenolic Cotton Fabric Laminate Sheet:

1. Excellent Electrical Properties

One of the key features of Phenolic Cotton Fabric Laminate Sheet is its excellent electrical properties. It is an excellent insulator and can withstand high voltages and currents without breaking down. This makes it ideal for applications that require electrical insulation, such as electrical panels, transformers, switchgear, and motor winding.

2. High Mechanical Strength

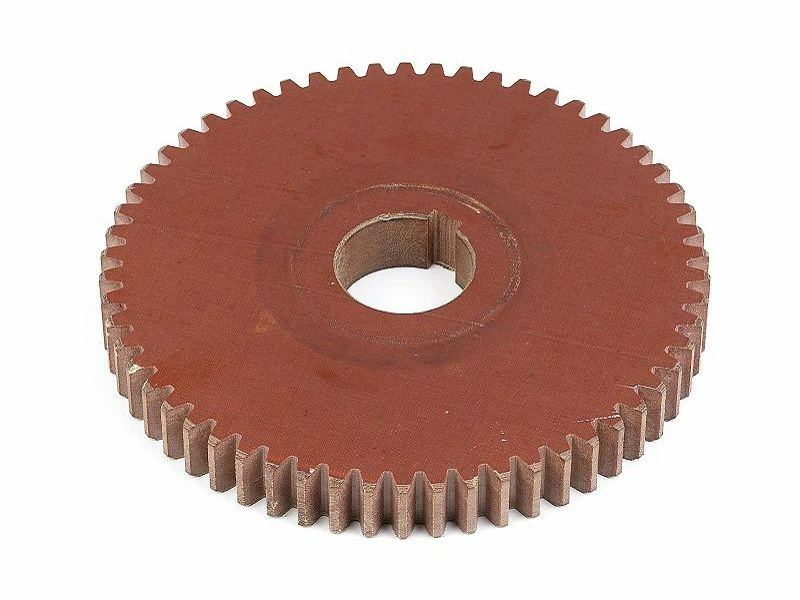

Phenolic Cotton Fabric Laminate Sheet has high mechanical strength, which means it can withstand high stresses without breaking or deforming. It has excellent impact resistance, flexural strength, and tensile strength. This makes it ideal for applications that require mechanical strength, such as gears, bearings, and structural components.

3. Excellent Chemical Resistance

Phenolic Cotton Fabric Laminate Sheet is resistant to a wide range of chemicals, acids, and alkalis, which makes it ideal for applications in harsh environments. It can withstand exposure to chemicals and harsh substances without corroding or deteriorating. This makes it ideal for applications in the chemical industry, such as tanks, pipes, and vessels.

4. Good Thermal Resistance

Phenolic Cotton Fabric Laminate Sheet has good thermal resistance, which means it can withstand high temperatures without deforming or melting. It can withstand temperatures of up to 120 degrees Celsius without losing its mechanical or electrical properties. This makes it ideal for applications in the automotive and aerospace industries, such as engine components and heat shields.

5. Versatile and Customizable

Phenolic Cotton Fabric Laminate Sheet is a versatile material that can be customized to meet specific requirements. It can be cut, drilled, and machined to form complex shapes and sizes. It can also be laminated with other materials to improve its properties, such as adding a layer of aluminum foil for better heat dissipation.

6. Cost-effective

Finally, Phenolic Cotton Fabric Laminate Sheet is a cost-effective and value-for-money material. It is cheaper than other high-performance materials such as carbon fiber, yet it offers comparable performance in many applications.

In conclusion, Phenolic Cotton Fabric Laminate Sheet is a versatile, durable, and cost-effective solution for many applications across various industries. As a manufacturer, [Company Name] is committed to providing high-quality products that meet the needs of our customers. If you are looking for a reliable supplier of Phenolic Cotton Fabric Laminate Sheet, contact us today!

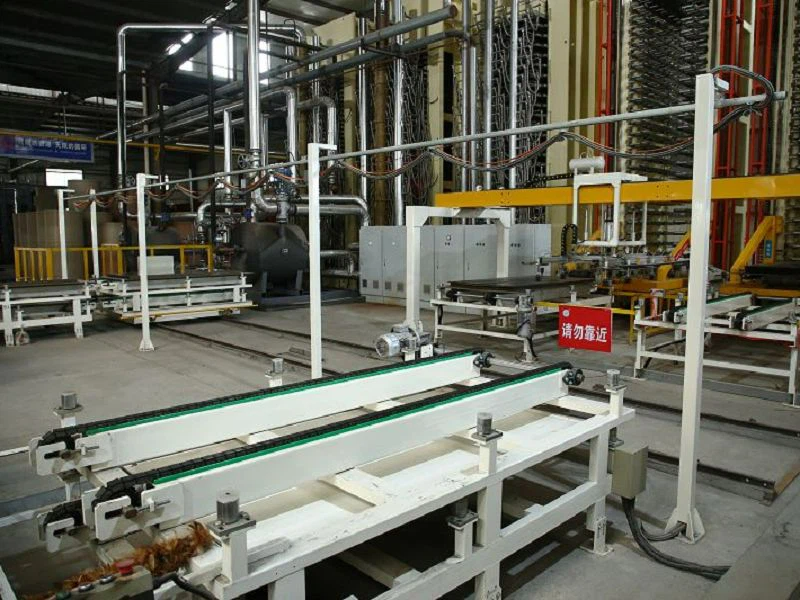

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

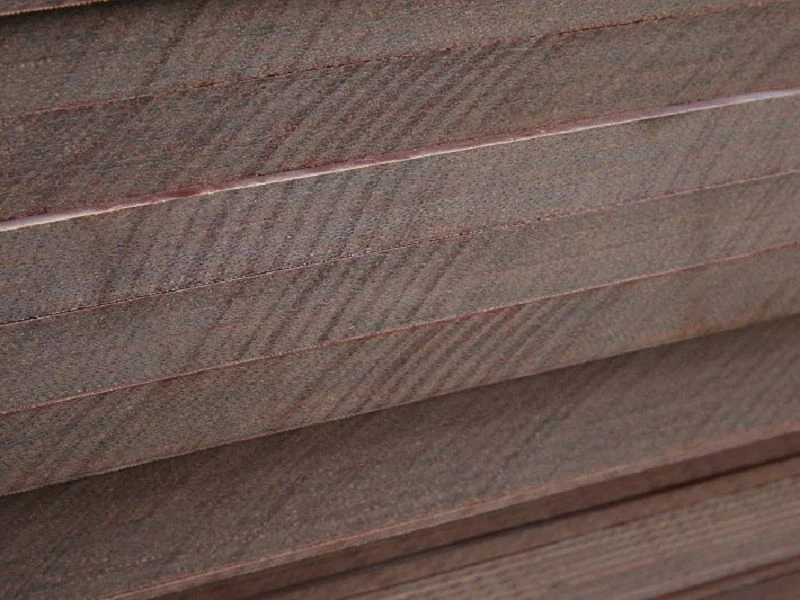

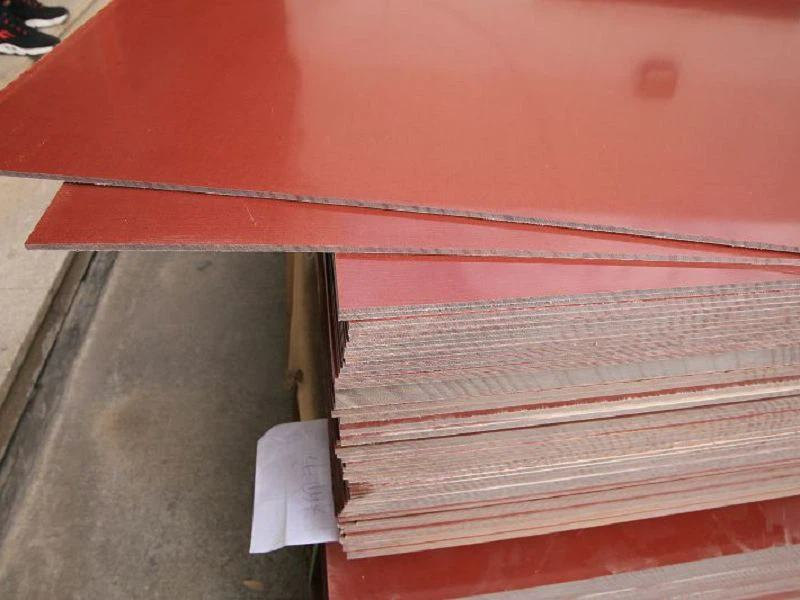

Cloth board, also known as phenolic laminated cloth board which is made of phenolic resin and cotton cloth, normally has good electrical and mechanical properties. The processing performance of 3025 phenolic cloth board is better than that of cardboard and glass cloth board, the bonding strength and impact strength are higher than that of cardboard, but the water absorption is large, the electrical insulation is decreased after moisture absorption, and easy to grow mold, not suitable for use in hot and humid areas. Therefore, it is generally used as insulation parts of low-voltage motor appliances, such as washers, slot wedges, screws, etc.

3025 PHENOLIC COTTON CLOTH LAMINATED SHEET
Serial number	Properties		Unit	Grade
	1000mm*2000mm			3025
1	Flexural strength perpendicular to laminations	≥	MPa	90
2	Tensile strenght	≥	MPa	50
3	Parallel shear strength	≥	MPa	35
4	Bonding strength	≥	N	5500
5	Dielectric strength Perpendicular to Laminations (in 90±2°C transformer oil, 1.5mm-2mm in thickness)	≤	MV/m	2
6	Breakdown voltage parallel to Laminations (in 90±2°C transformer oil,1.5-2mm)	≤	KV	1
7	Insulation Resistance after impregnated in water	≥	Ω	1.0×106
8	Density		g/cm3	(1.45-1.5)
9	Color		-	Brown
10	Impact strength(Charpy)	≥	KJ/m2	7.9
11	Water absorbability(D-24/23, 1.6mm in thickness)		Mg	296



Supply Ability

300000 Kilogram/Kilograms per Month



Packaging & delivery

Pallet or according to customer requirement



Port

Ningbo/Shanghai



Minimum order quantity requirement

500kgs



Certificate
