Textolite

Introduction

Textolite is a high-quality laminate material that is produced by sealing layers of fabric or paper with a thermosetting plastic resin. This material is widely used in a variety of industries for different applications, ranging from electrical insulators and mechanical components to decorative surfacing and signage. As a manufacturer of Textolite products, we pride ourselves on delivering superior performance, durability and versatility that meet the most challenging demands of our customers across the globe.

Features and Benefits

Textolite has several distinctive features and benefits that make it a preferred choice by many merchants worldwide. Some of the key features and benefits include:

1. High strength and resistance to wear and tear

One of the most notable features of Textolite is its exceptional strength and durability, which makes it ideal for use in applications that require extreme resistance to wear and tear. It has a high tensile strength, which means it can withstand a significant amount of stress and pressure without breaking or cracking.

2. Excellent dielectric properties

Textolite has excellent electrical insulating properties, which make it suitable for use in electrical applications. It has a high dielectric strength, which allows it to resist electric fields and prevent electrical arcing, making it ideal for use in electrical switchgear, transformers and other electrical components.

3. Corrosion-resistant

Textolite has excellent resistance to corrosive substances, such as acids, alkalis, salts and solvents, making it ideal for use in harsh environments. It does not rust, tarnish or corrode, and can withstand exposure to extreme temperatures, humidity and UV radiation without deteriorating or losing its physical properties.

4. Versatile

Textolite is a highly versatile material that can be used in a wide variety of applications, including mechanical components, electrical insulators, decorative surfacing and signage, among others. It is available in different colors, thicknesses and patterns, allowing merchants to customize it to their exact specifications.

5. Easy to work with

Textolite is easy to work with and can be cut, drilled, machined, stamped and engraved to create complex shapes and designs. It can be glued, screwed or nailed to other materials without cracking or splitting, making it a versatile material for fabrication and installation.

Applications

Textolite has a wide range of applications across different industries. It can be used in:

1. Electrical industry - Textolite is an ideal material for electrical insulation, switches, relays, connectors, and other components that require high insulation and mechanical strength.

2. Mechanical industry - Textolite is used in gears, bearings, piston rings, valve bodies, and other mechanical components that require high resistance to wear and tear.

3. Decorative surfacing - Textolite is used in furniture, flooring, wall panels, and other decorative applications due to its excellent surface finish, color options, and durability.

4. Signage - Textolite is widely used in outdoor signs, nameplates, and identification tags due to its excellent weather resistance, color stability and high visibility.

5. Automotive industry - Textolite is used in brake pads, gaskets, clutch facings, and other automotive components due to its high-temperature resistance, mechanical strength, and durability.

Conclusion

In conclusion, Textolite is a high-performance laminate material that offers exceptional strength, durability, and versatility for a wide range of applications. As a manufacturer of Textolite products, we are committed to delivering the highest quality products that meet the most demanding requirements of our customers worldwide. We offer a wide range of Textolite products, including sheets, rods, tubes, and other custom-made products, all of which are available at competitive prices. Contact us today to learn more about our products and services.

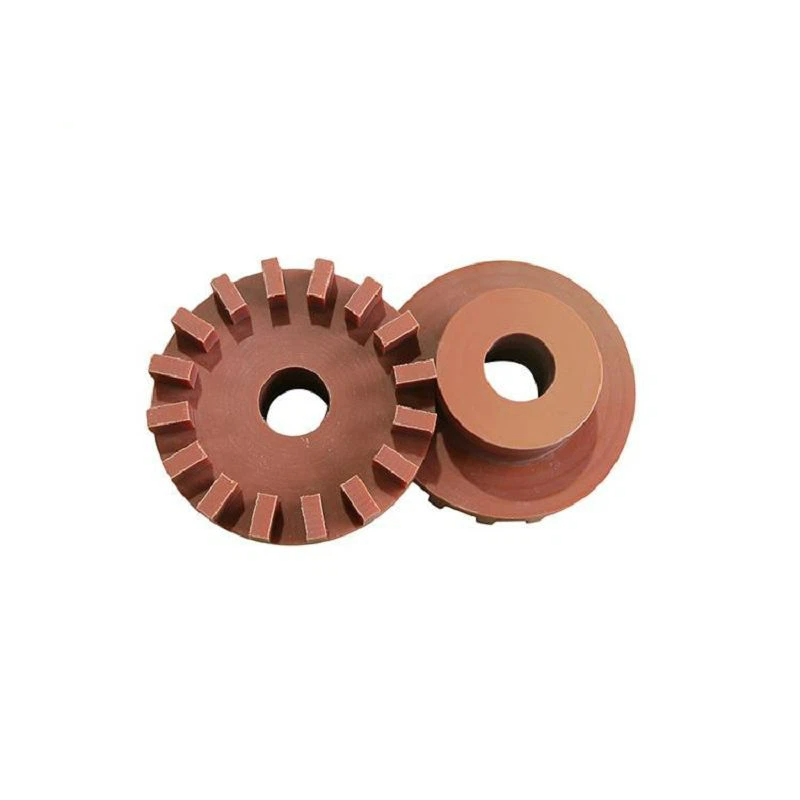

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

Phenolic Cotton Cloth Laminated Sheet is a laminated material made by hot pressing of cotton cloths impregnated with a thermosetting phenolic resin binder.
Phenolic Cotton Cloth Laminated Sheet has high compression strength and increased resilience, favorably lends itself to machining by drilling, cutting and forging. That is why it is widely used to make parts loaded with reversed electrical and mechanical stresses or working under friction (bushings, cams, etc.).

3025 PHENOLIC COTTON CLOTH LAMINATED SHEET
Serial number	Properties		Unit	Grade
	1000mm*2000mm			3025
1	Flexural strength perpendicular to laminations	≥	MPa	90
2	Tensile strenght	≥	MPa	50
3	Parallel shear strength	≥	MPa	35
4	Bonding strength	≥	N	5500
5	Dielectric strength Perpendicular to Laminations (in 90±2°C transformer oil, 1.5mm-2mm in thickness)	≤	MV/m	2
6	Breakdown voltage parallel to Laminations (in 90±2°C transformer oil,1.5-2mm)	≤	KV	1
7	Insulation Resistance after impregnated in water	≥	Ω	1.0×106
8	Density		g/cm3	(1.45-1.5)
9	Color		-	Brown
10	Impact strength(Charpy)	≥	KJ/m2	7.9
11	Water absorbability(D-24/23, 1.6mm in thickness)		Mg	296



Minimum order quantity requirement

500kgs
