Epoxy Resin Board

Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor. Color:Yellow (Other colors can be customized) Thickness:0.5-120MM Size:1020*2020MM,1220*2440MM,1220*1220MM Density:1.9-2.15 g/cm3



Introduction:



Epoxy resin has become increasingly popular as a material in recent years, especially in the construction and furniture industries. It is a type of thermosetting polymer that can create a durable, hard-wearing surface with a glossy finish. Epoxy resin can be applied to various surfaces, including wood, concrete, and metal, and is suitable for a broad range of applications.



One particular application is the production of Epoxy Resin Board. This type of board is a composite material composed of a resin matrix and glass fibers. Epoxy Resin Board is incredibly durable, waterproof, and heat resistant, making it an ideal material for the creation of high-quality surfaces and products.



Here are some aspects that can be highlighted to introduce the product:



Durability:



Durability is one of the most significant benefits of Epoxy Resin Board. The material is incredibly strong and resistant to impact and stress. It is also highly resistant to scratch and abrasion, making it ideal for heavy use applications like industrial settings, commercial kitchens, and laboratories. The surface of Epoxy Resin Board is easy to clean and maintain, making it an excellent choice for applications that require frequent cleaning.



Waterproof:



Epoxy Resin Board is a completely waterproof material, which makes it ideal for wet environments. The board is not affected by water, making it perfect for use in areas like bathrooms, pool decks, and spas. Even when exposed to water, the material retains its strength and durability, which keeps it looking and performing great for years to come.



Heat resistant:



Epoxy Resin Board is highly heat resistant and can withstand temperatures up to 180 degrees Celsius. This feature makes it an ideal choice for kitchen surfaces, where heat is a common issue. Furthermore, Epoxy Resin Board is ideal for use in laboratory settings, where heat is produced during experiments.



Customizable:



Epoxy Resin Board is a highly customizable material. It is available in various colors and patterns, allowing merchants to create unique products and surfaces with minimal effort. The color options are vast and can be matched to any aesthetic palette.



Fire-resistant:



Epoxy Resin Board also has excellent fire-resistant properties, making it ideal for use in buildings and products that demand robust fire-protection features. The material has a high ignition point, providing a strong barrier against flames and heat. This feature enhances the safety levels of products made from the material significantly.



Lightweight:



Epoxy Resin Board is exceptionally lightweight, making it ideal for use in furniture applications. Unlike traditional wood, which can be challenging to move around, Epoxy Resin Board can be easily carried, making it ideal for the manufacture of lightweight furniture.



Conclusion:



In conclusion, Epoxy Resin Board is an excellent material for the creation of high-quality surfaces and products. Its durable, waterproof, and heat-resistant nature make it perfect for use in industrial, commercial, and residential applications. The material is customizable, lightweight, easy to clean, and fire-resistant, making it one of the most dynamic materials available on the market.



My Epoxy Resin Board product meets all these attributes, making it an ideal choice for merchants looking to create high-quality, long-lasting products. Please feel free to contact us for manufacturing, customization, and shipping information.



We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.



Product description

Applications: Used in mechanical, electrical and electronic insulation structure parts. Used in Chemical machine parts. Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor. Color:Yellow (Other colors can be customized) Thickness:0.5-120MM Size:1020*2020MM,1220*2440MM,1220*1220MM Density:1.9-2.15 g/cm3



Epoxy Resin Board
Epoxy Resin Board

3240-A EPOXY GLASS CLOTH LAMINATE SHEET

Properties

Unit

Grade:3240-A

Flexural strength perpendicular to laminations (A: under normal conditions E-1/150: 150±5 °C)

Mpa

320

Impact Strength parallel to laminations (Charpy)

KJ/m2

33

Insulation Resistance after immersion in water (D-24/23)

Ω

1.0×108

Dielectric strength perpendicular to laminations (in 90±2°C transformer oil)

MV/m

14.2

Breakdown voltage parallel to laminations (in 90±2°C transformer oil)

KV

30

Water absorption (D-24/23, 1mm in thickness)

mg

18

Permittivity (1 MHz)

-

5.5

Dissipation factor (1 MHz)

-

0.04

Flammability



Class

-

Density



g/cm3

(1.9-2)

Color



-

Natural



Supply Ability

300000 Kilogram/Kilograms per Month



Minimum order quantity requirement

500kgs

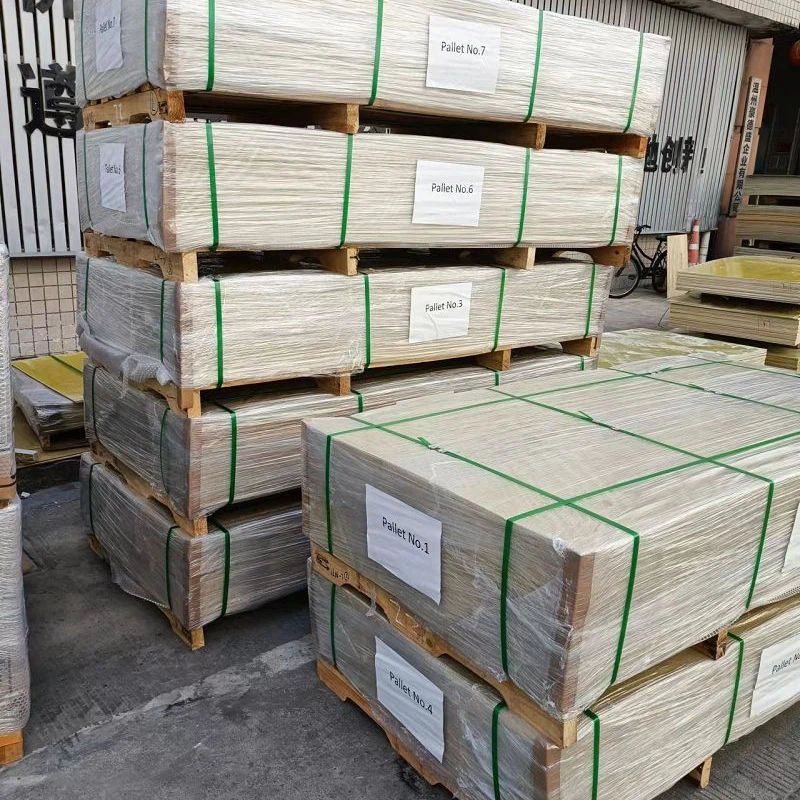

Packaging & delivery

Pallet or according to customer requirement.

Port

Ningbo/Shanghai

Epoxy Resin Board
Epoxy Resin Board



Main features of epoxy board:

Due to its ultra-high molecular weight of 7 million, it has extremely high impact strength, and it still maintains extremely high impact kinetic energy absorption under high stress. It has a high strength modulus, excellent wear resistance and sliding properties, and maintains its size when it is warm. stability. Anti-ultra-low temperature -265°C. Even at low temperatures, it still maintains very excellent tensile strength and notched impact strength, and is resistant to acids and pigments.

According to the production of epoxy board, it is possible to increase the high-density polyethylene xi board, and in the process of relative low density, it is possible to increase the relative temperature of the stable melting temperature and melting point, according to the pe rod In the application processing program, it can increase the smoothness of processing in a wide range of applications, and promote the stable shrinkage of the process of blending with chemicals and substances among the main characteristics, which can improve the processing at room temperature. There will be no melting phenomenon between the process and the solution.



For drones, For UAV



Why choose us?

  • We work closely with our customers to understand their needs and deliver the best possible solutions.
  • We're committed to providing easy, time-saving and money-saving one-stop purchasing service of consumer for Epoxy Resin Board.
  • Our Epoxy Boards are rigorously tested to ensure they meet the highest standards of performance and reliability.
  • On the basis of continuous research and development and breakthroughs, we continue to seek new horizons for development, create more high-end technologies and products, and disseminate them to the society, and continuously transform them into productivity and social wealth.
  • Our Epoxy Boards are designed to meet the needs of any industry or application.
  • We have a complete inventory of variable Epoxy Resin Board and and an efficient warehousing and distribution system.
  • Our pricing is transparent and competitive, ensuring our customers get the best possible value.
  • We work hard to do every detail for our users, do a good job of products, and win greater market recognition and market share with user satisfaction. The trust of every user is an incentive and spur to us!
  • We are constantly innovating and improving our manufacturing processes to ensure the highest level of quality and efficiency.
  • We have achieved a simultaneous increase in popularity and reputation in the hearts of consumers.
