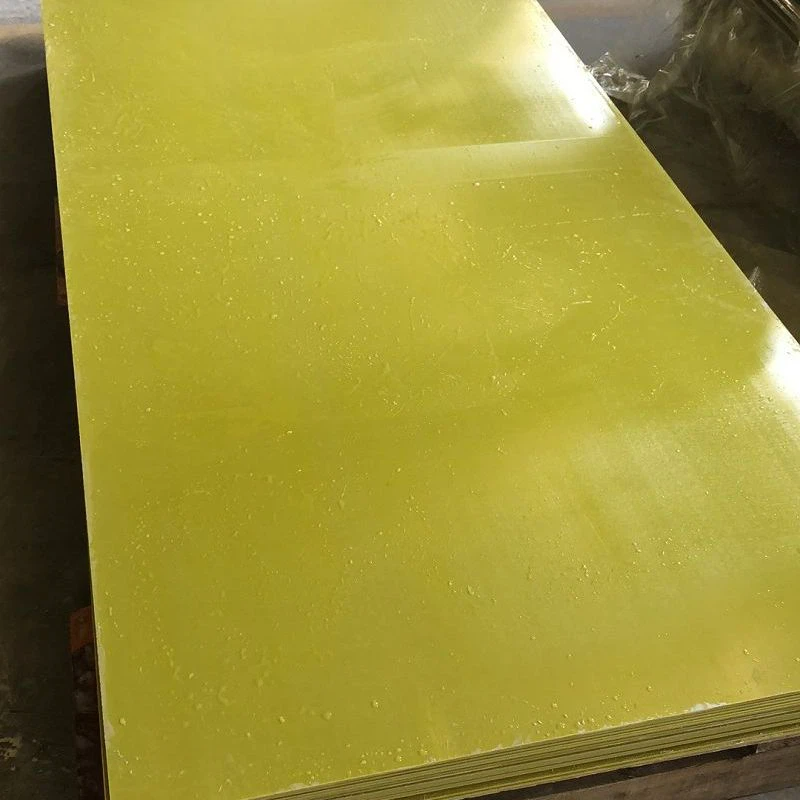

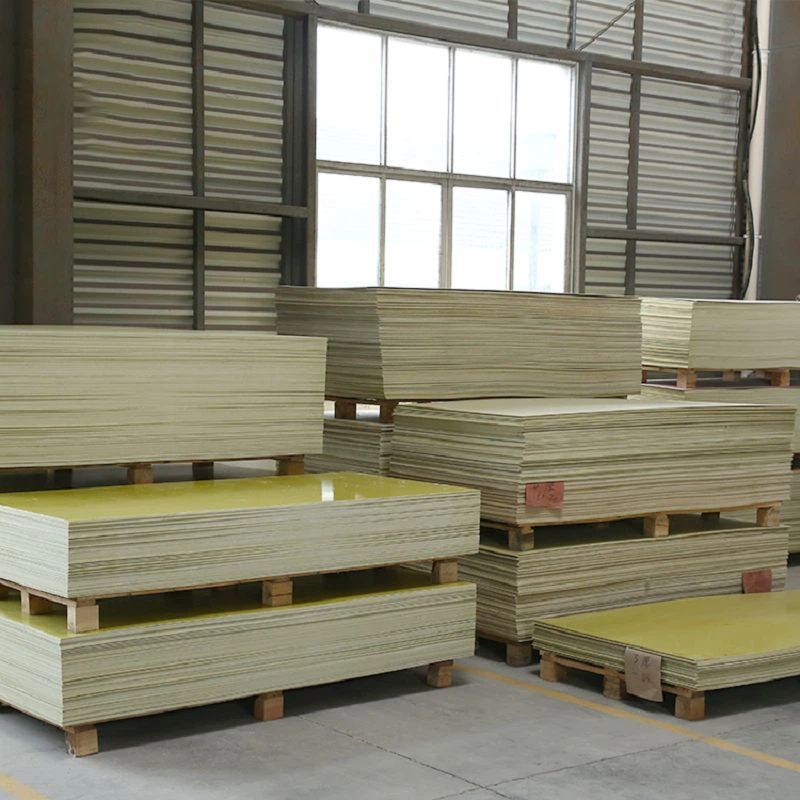

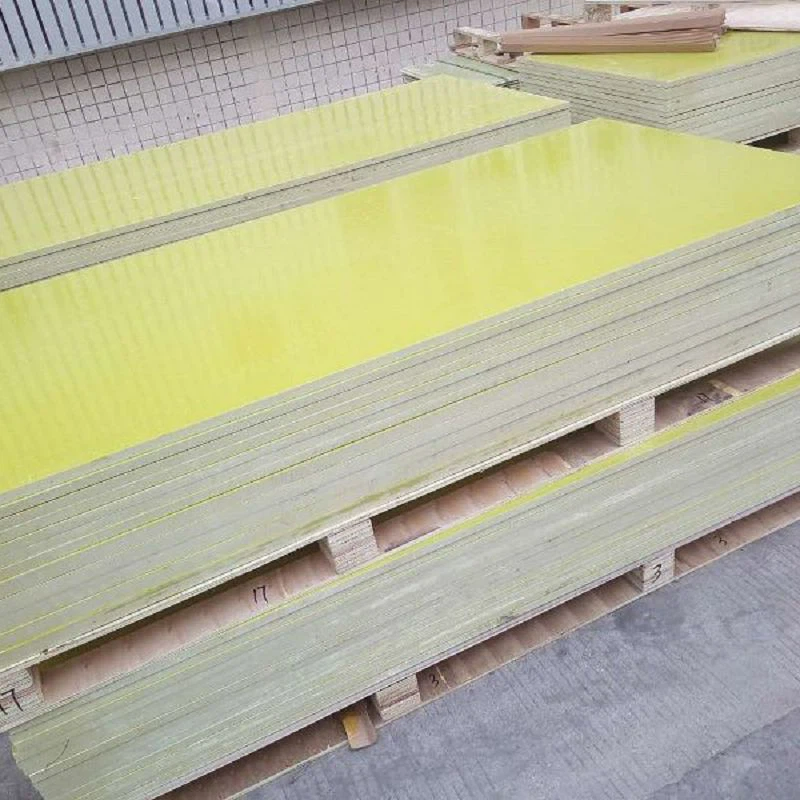

Epoxy Fiberglass Sheet

Epoxy Fiberglass Sheet is a high-quality material that has gained popularity in various industries due to its superior performance, durability, and flexibility of use. This material is extensively used in the electrical, electronics, aerospace, automotive and construction industries.

As a manufacturer in China, we provide a wide range of Epoxy Fiberglass Sheets that are designed to meet the varying needs of our clients. We offer a different range of thicknesses, sizes, and dimensions, and colors to cater to different applications.

Our Epoxy Fiberglass Sheets are made from non-woven fiberglass reinforced material that is impregnated with an epoxy resin. This combination gives our Epoxy Fiberglass Sheet its high strength, excellent insulation, and resistance to various environmental factors such as moisture, heat, and chemicals. Our Epoxy Fiberglass sheets are high in mechanical strength, and they have low dielectric loss and low water absorption.

Our Epoxy Fiberglass Sheet is also flame retardant, which makes it ideal for use in high-temperature applications, such as in electrical equipment and machinery. Our Epoxy Fiberglass Sheet is also chemically stable, which enables it to withstand long-term exposure to different chemicals such as acids, oils, and solvents.

One of the notable features of our Epoxy Fiberglass Sheet is its high electrical insulation properties. Our product has a high dielectric strength, which makes it suitable for use as insulation in electrical equipment where high voltage is present. Our Epoxy Fiberglass Sheet also has an excellent arc resistance, which helps to prevent electrical breakdown and fire. These properties make our product ideal for use in electrical insulators, switches, transformers, and other electronic applications.

Our Epoxy Fiberglass Sheet is also flexible, which makes it easy to bend and manipulate while still retaining its high strength and durability. This feature enables it to be used in various applications such as backing material for laminates, electrical insulation, structural material, and more.

Another notable feature of our Epoxy Fiberglass Sheet is its ease of processing. Our product can be easily cut, drilled, and machined, which makes it easy to customize and fabricate it to the specific requirements of our clients. Furthermore, the product's excellent bonding properties allow it to be easily integrated into other structures and materials.

In conclusion, as a manufacturer of Epoxy Fiberglass Sheet in China, we provide our client with high-quality, durable, and versatile products that meet varied applications in various industries. Our product's superior performance, excellent electrical insulation properties, resistance to various environmental factors, and ease of processing make it an ideal choice for our clients. Contact us to order your next batch of high-quality Epoxy Fiberglass sheet today!

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

3240 epoxy boardgenerally has A B-level temperature resistance. It has higher mechanical properties and strength below the normal temperature of 130 degrees, and its electrical performance is relatively stable in the dry and wet state. It is used in the parts of insulating structure in high and low voltage electrical, electronic and other industries, and belongs to the middle product in the field of insulating board,3240 epoxy boardgenerally has A B-level temperature resistance. It has higher mechanical properties and strength below the normal temperature of 130 degrees, and its electrical performance is relatively stable in the dry and wet state. It is used in the parts of insulating structure in high and low voltage electrical, electronic and other industries, and belongs to the middle product in the field of insulating board,



3240-A EPOXY GLASS CLOTH LAMINATE SHEET
Properties		Unit	Grade：3240-A
Flexural strength perpendicular to laminations (A: under normal conditions E-1/150: 150±5 °C)	≥	Mpa	320
Impact Strength parallel to laminations (Charpy)	≥	KJ/m2	33
Insulation Resistance after immersion in water (D-24/23)	≥	Ω	1.0×108
Dielectric strength perpendicular to laminations (in 90±2°C transformer oil)	≥	MV/m	14.2
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)	≥	KV	30
Water absorption (D-24/23, 1mm in thickness)	≤	mg	18
Permittivity (1 MHz)	≤	-	5.5
Dissipation factor (1 MHz)	≤	-	0.04
Flammability		Class	-
Density		g/cm3	(1.9-2)
Color		-	Natural

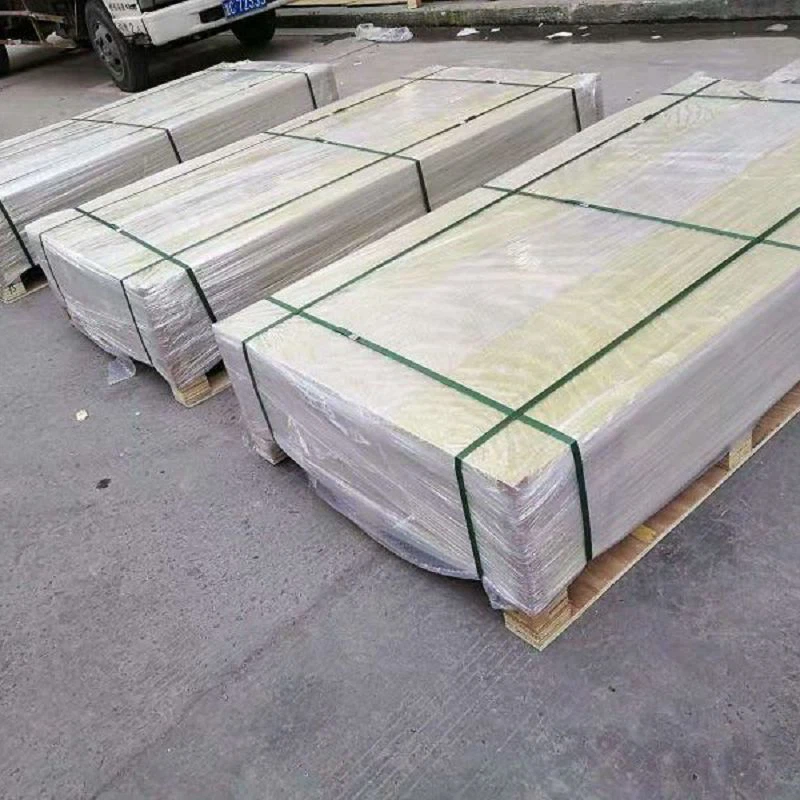

Package

Pallets or as customer's request.

Delivery:20-30days



Minimum order quantity requirement

500kgs



Applications

Used in mechanical, electrical and electronic insulation structure parts. Used in Chemical machine parts. Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor. Color:Yellow (Other colors can be customized) Thickness:0.5-120MM Size:1020*2020MM,1220*2440MM,1220*1220MM Density:1.9-2.15 g/cm3



Zhejiang Kaxite Sealing Insulation Material Co., Ltd. is mainly engaged in the sales and finishing of insulation materials.

The company's main products:

Insulation board series: orange red bakelite board, black bakelite board, 3021 phenolic laminated cardboard, 3240 epoxy board, 3025 phenolic cloth board, FR-4 epoxy board, SMC high voltage insulation board, PVC plastic board.

Insulating pipe and rod series: PE polyethylene rod, PA nylon rod, 3723 phenolic cloth rod, 3841 epoxy rod, 3640 epoxy tube.

Knife switch bottom plate series: including various general and non-standard epoxy boards and phenolic paper boards, see the product category of the website for details.

Various types of insulating board processing series: according to the customer's drawings or samples for finishing, please refer to the product category of the website for details.

Other insulating material series: conductive paste, yellow wax tube, electrical tape, etc.
