Phenolic Fiberglass Sheet

Introduction:

Phenolic fiberglass sheets are versatile and durable sheets that offer a wide range of applications. These sheets are manufactured by combining phenolic resin with woven fiberglass, creating a composite material that is both lightweight and strong. Phenolic fiberglass sheets have excellent mechanical, electrical, and thermal properties, which make them ideal for use in various industrial and commercial applications.

Features and Benefits:

1. High strength: Phenolic fiberglass sheets are known for their high strength and toughness. The sheets have a high resistance to impact, wear and tear, and can withstand heavy loads without deforming or breaking.

2. Chemical resistance: Phenolic fiberglass sheets are resistant to a wide range of chemicals and solvents. This makes them ideal for use in chemical processing plants, laboratories, and other industries where exposure to harsh chemicals is common.

3. High temperature resistance: The phenolic resin used in the manufacturing process of these sheets has excellent heat resistance properties. The sheets can withstand high temperatures of up to 150 degrees Celsius without losing their strength or shape. This feature makes them ideal for use in high-temperature environments such as ovens, boilers, and other industrial applications.

4. Electrical insulation: Phenolic fiberglass sheets have excellent electrical insulation properties, making them suitable for use in electrical and electronic applications. They are ideal for use in the manufacturing of printed circuit boards, transformers, motor enclosures, and other electrical equipment that requires a high level of insulation.

5. Fire retardant: Phenolic fiberglass sheets are inherently fire retardant. They do not support combustion, and their fire resistance properties make them suitable for use in applications where fire safety is critical, such as in building and construction industries.

Applications:

1. Electrical and electronic equipment: Phenolic fiberglass sheets are commonly used in the manufacture of printed circuit boards, transformers, and other electrical equipment, thanks to their excellent electrical insulation properties.

2. Chemical processing: These sheets can be used in chemical processing plants, laboratories, and other industries where exposure to harsh chemicals is common because of their resistance to chemicals and solvents.

3. Building and construction: Phenolic fiberglass sheets are ideal for use in building and construction industries, as they are inherently fire retardant and can be used in applications where fire safety is a concern. They can also be used as insulation material in HVAC systems.

4. Transportation: These sheets can be used in the transportation industry, such as in the manufacture of aircraft and marine parts, because of their high strength and heat resistance properties.

Conclusion:

Phenolic fiberglass sheets are an ideal choice for various industrial and commercial applications. These sheets are strong, lightweight, heat-resistant, and have excellent electrical insulation properties. Their versatility and durability make them an ideal choice for use in electrical and electronic equipment, chemical processing plants, building and construction industries, and the transportation industry. As a leading manufacturer of phenolic fiberglass sheets in China, we are committed to providing high-quality products that meet the needs and expectations of our customers. Contact us today to learn more about our products and how we can help you.

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

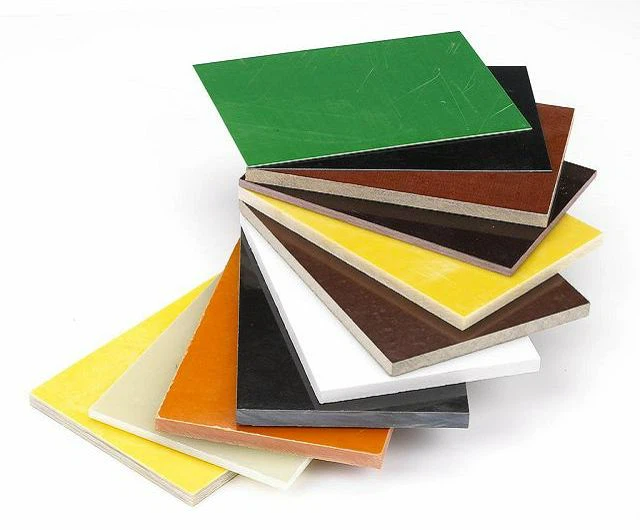

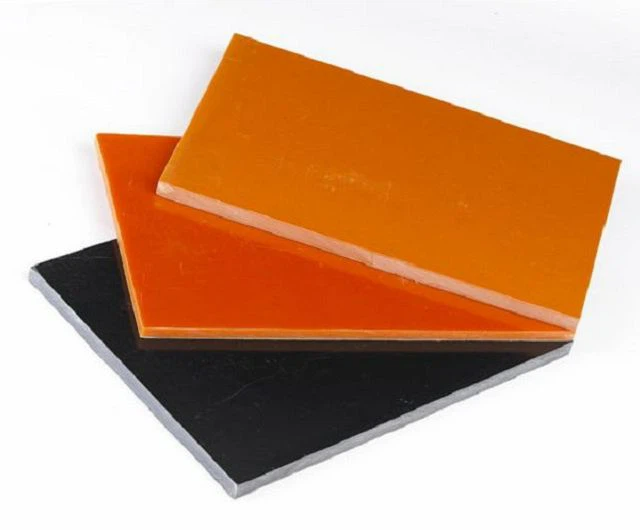

3021 lamination sheets also know as phenolic paper laminated sheet ,is made of kraft paper and phenolic resin.We have a series of 3021 lamination sheets ,Thickness from 3mm to 50mm,inculding several color of orange,coffee,light brown,black...Besides the raw material,we also provide CNC machine for processing.

Phenolic paper sheet 3021
Size:1020*1220mm,1020*2040mm,1220*2440mm
Thicknss:3-100mm
Color:Brown Orange Black
Density:1.4
Component:Phenoilic resin + Kraft/wood pulp Paper
Usage:Low voltage electrical insulation

3021 PHENOLIC PAPER LAMINATED SHEET
Serial number	Properties		Unit	Grade
				3021-C
1	Flexural strength perpendicular to laminations above 2mm	≥	MPa	147
2	Bonding strength	≥	N	3206
3	Dielectric Strength Perpendicular to Laminations (in 90°C transformer oil)	≥	MV/m	1.6
4	Breakdown voltage parallel to laminations(in 90°C transformer oil)	≥	kV	4.4
5	Permittivity (1MHz)	_	-	3.71
6	Dissipation factor (1MHz)	_	-	0.0267
7	Insulation Resistance after impregnated in water	≥	Ω	1.2×108
8	Density		g/cm3	(1.45-1.5)
9	Water absorption (10mm in thickness)	≤	mg	653.7
10	Color		-	Coffee



Product Detail

Sample	Sample Avaliable
Color	Orange/Brown/Black
Thickness(mm)	1.0-120
Parallel Breakdown voltage	above 1kv
customerization	Yes
density(g/m3)	1.3-1.4
Feature	Electrical Performence
Usage	Insulation Protection
Shrink ratio	2:1
Product Keywords	getinax sheet,PFCP201 phenolic SRBP P1 paxolin,phenolic paper laminated sheet trade



We manufacture phenolic resin paper laminates(3021 bakelite )over 10 years with good quality and reasonable price.If you are looking for a new suitable supplier now, Kaxite Sealing must be your wisdom choise~



Supply Ability

300000 Kilogram/Kilograms per Month



Packaging & delivery

Pallet or according to customer requirement



Minimum order quantity requirement

500kgs



Port

Ningbo/Shanghai
