3021 Phenolic Paper Laminate Sheet

3021 Phenolic Paper Laminate Sheet: An Introduction

Are you looking for a reliable and high-quality laminate sheet for your industrial or commercial usage? Look no further than 3021 Phenolic Paper Laminate Sheet, which excels in durability, resistance to high temperature, and excellent mechanical strength. Based in China, we have been supplying premium quality phenolic paper laminate sheets to merchants all over the world at competitive prices.

Phenolic paper laminate sheets are known for their exceptional performance in various industrial applications. Unlike traditional materials, such as wood and steel, phenolic paper laminate sheets are much lighter, cost-effective and possess superior mechanical properties. These properties help in providing better insulation, corrosion resistance, and thermal stability - making it an ideal choice for most applications.

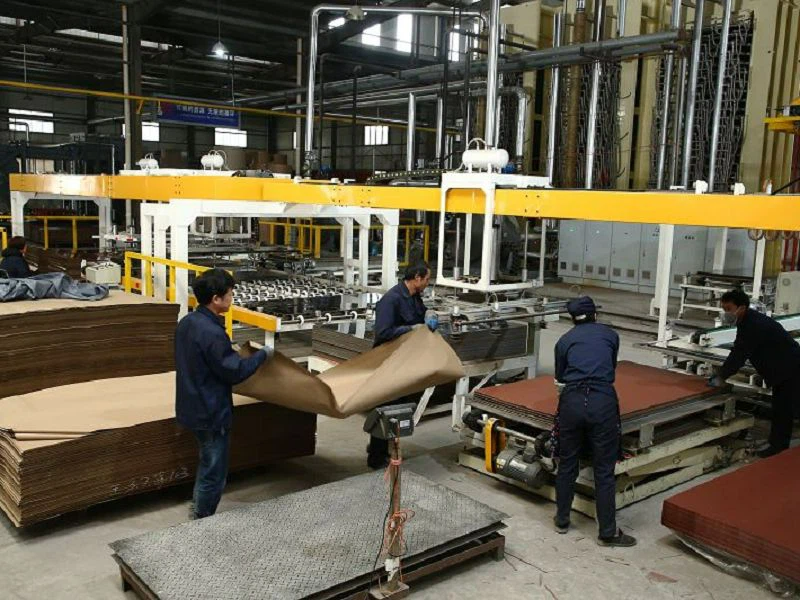

At our manufacturing facility, we use high-quality phenolic resin with paper sheets to produce 3021 Phenolic Paper Laminate Sheets. The process comprises of a layer of resin impregnated paper that is hot-pressed under high temperature and pressure machines. This treatment ensures complete impregnation of the paper with resin for optimal bonding and consistent thickness.

The 3021 Phenolic Paper Laminate Sheet has several unique features that make it stand out from other laminates on the market. Firstly, it has high electrical insulation, making it an exceptional choice for electrical panels, switchboards, and transformer cores. Secondly, it is highly resistant to heat because of the phenolic resin component, making it an ideal option in applications where there is exposure to high temperatures. Thirdly, it has excellent mechanical strength and good dimensional stability, making it an ideal material for gears, bearings, and other mechanical components.

The 3021 Phenolic Paper Laminate Sheet is available in different thicknesses and colors, which makes it an ideal choice for a wide range of applications. The standard thickness ranges from 0.5mm to 100mm, and we can also customize it based on your specific requirements. Furthermore, this laminate sheet has excellent machinability, which makes it easy to cut, drill and machine it for various industrial applications.

Additionally, the 3021 Phenolic Paper Laminate Sheet is also an eco-friendly product. It does not contain hazardous substances like lead, mercury, and cadmium, which not only makes it safe for usage but also compliant with international standards. This feature is particularly important for merchants who are keen on promoting sustainability in their business operations.

We pride ourselves on our customer-centric approach and the assurance of high-quality products at competitive prices. Through our exceptional production techniques, we ensure that our products meet the highest standards of quality and durability. As a result of our superior quality, our products have been widely accepted by merchants all over the world in several applications like automotive, electrical, mechanical, and construction industries.

In conclusion, 3021 Phenolic Paper Laminate Sheet is a durable, versatile, and cost-effective material with a wide range of industrial applications. Our product stands out from the rest because of its electrical insulation, heat resistance, and excellent mechanical strength. We invite you to explore our product range and contact us for more information or to place an order. We are confident that we will provide you with the best products and services in the market!

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

3021 phenolic paper laminated sheet is made up of paper impregnated with phenolic resin by baking and heat pressing. This product applies to components in insulation system of motor, electrical equipment which has high requirement on mechanical property and also applies to transformer oil. It is usually used in low-voltage apparatus, such as base board of distribution cabinet.

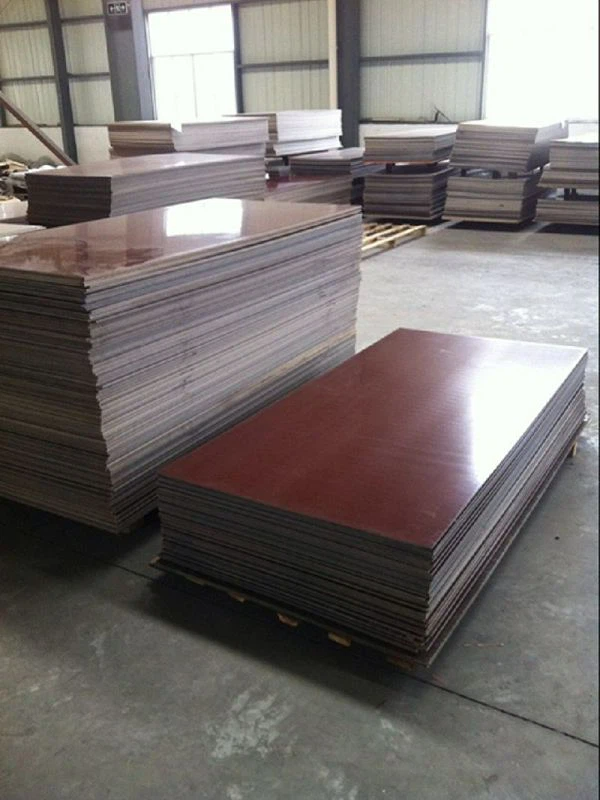

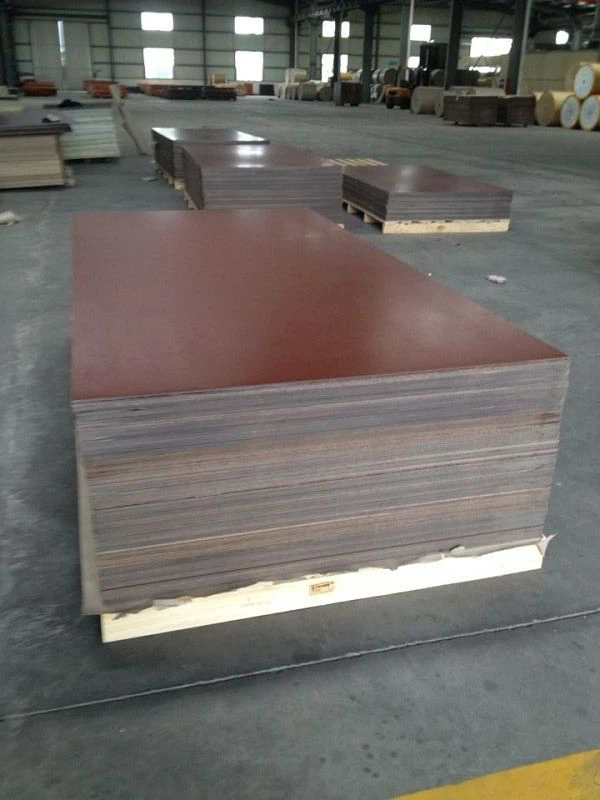

Color:Brown Thickness:0.5-50MM Size:1020*2020MM,1220*2440MM,1220*1220MM Density:1.45-1.5 g/cm3

3021 PHENOLIC PAPER LAMINATED SHEET
Serial number	Properties		Unit	Grade
				3021-C
1	Flexural strength perpendicular to laminations above 2mm	≥	MPa	147
2	Bonding strength	≥	N	3206
3	Dielectric Strength Perpendicular to Laminations (in 90°C transformer oil)	≥	MV/m	1.6
4	Breakdown voltage parallel to laminations(in 90°C transformer oil)	≥	kV	4.4
5	Permittivity (1MHz)	_	-	3.71
6	Dissipation factor (1MHz)	_	-	0.0267
7	Insulation Resistance after impregnated in water	≥	Ω	1.2×108
8	Density		g/cm3	(1.45-1.5)
9	Water absorption (10mm in thickness)	≤	mg	653.7
10	Color		-	Coffee



Supply Ability

300000 Kilogram/Kilograms per Month



Minimum order quantity requirement

500kgs



Packaging & delivery

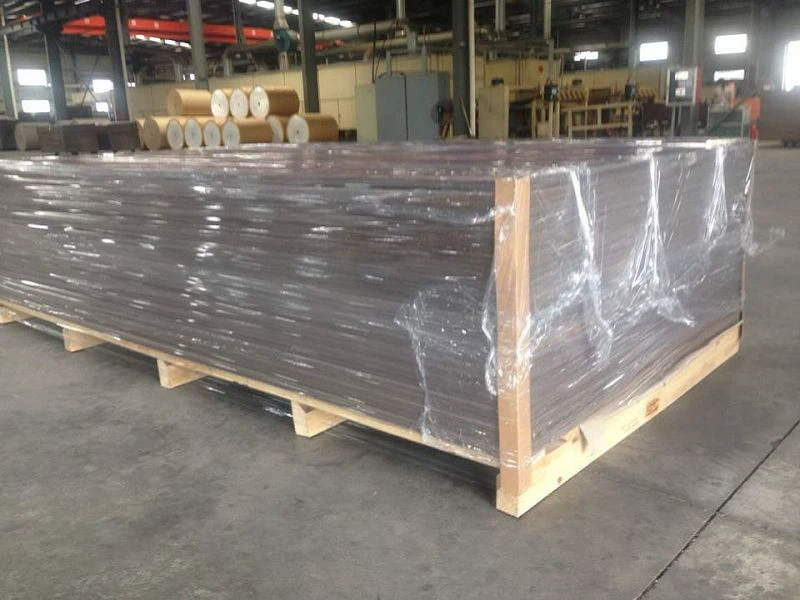

Pallet or according to customer requirement



Port

Ningbo/Shanghai



FAQ

1.Do you test all your goods before delivery?

Yes, we have 100% test before delivery



2.Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

3.Are you trading company or manufacturer ?

We are a manufacturer, We have more than 32 years experience in producing electrical insulation material.

4.Why choose us?

(1) We have adequate can save your time and cut down your cost.

(2) Have many kinds of insulation material to meet your demand.

(3) Also can customized machine according to clients drawing.

(4) Have professional QC team and test tools which can guarantee your quality.
