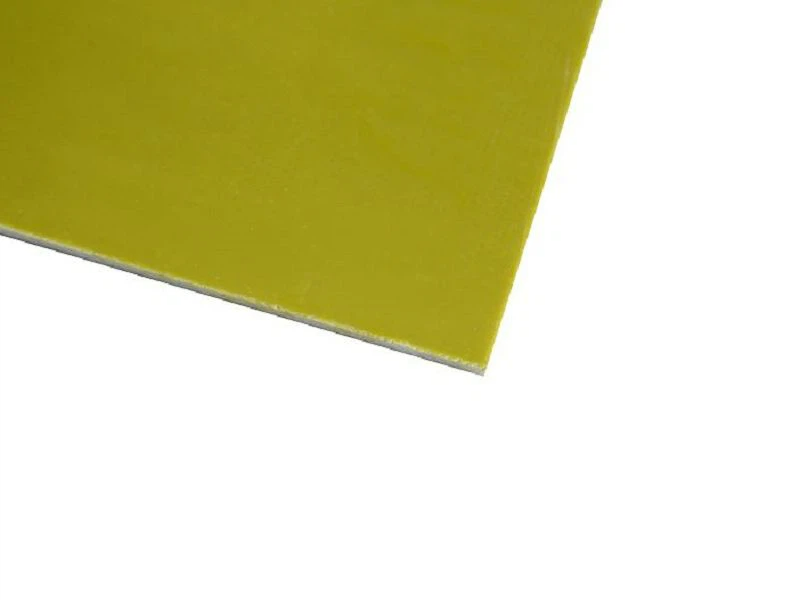

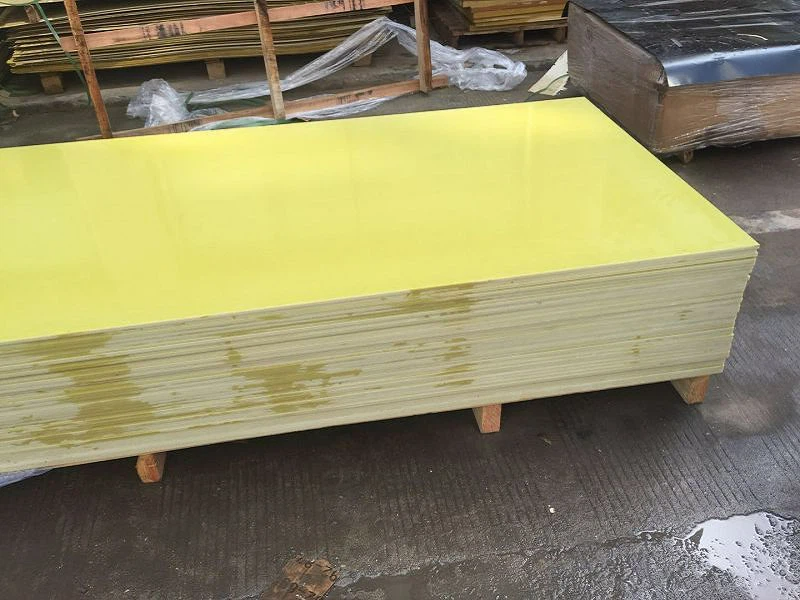

Epoxy Glass Cloth Laminated Sheet

Epoxy Glass Cloth Laminated Sheet is a highly versatile and functional material commonly used in various industries, including electrical engineering and electronics. This high-performance material is renowned for its durability, ruggedness, and superior insulating properties. These characteristics make the Epoxy Glass Cloth Laminated Sheet the ideal choice for many applications.

One of the primary features of the Epoxy Glass Cloth Laminated Sheet is its exceptional electrical insulation properties. Electrical insulation quality is critical for most electronic applications, especially in harsh environments such as high temperatures, humidity, and exposure to chemicals.

The Epoxy Glass Cloth Laminated Sheet is designed to withstand high voltage and voltage spikes, making it an ideal choice for electrical insulation for electrical equipment, transformers, and motors. With its impressive electrical insulation properties, the Epoxy Glass Cloth Laminated Sheet can effectively prevent electrical shocks, short circuits, and other electrical failures, which can result in costly downtime and equipment damage.

The Epoxy Glass Cloth Laminated Sheet also has excellent mechanical strength, which makes it ideal for applications where durability and toughness are crucial. It is perfect for mechanical insulation and structural applications in diverse industries, including aircraft, automotive, and construction.

Another significant advantage of the Epoxy Glass Cloth Laminated Sheet is its resistance to corrosion and chemicals. This property makes it ideal for use in harsh and corrosive environments, where it can withstand exposure to harsh chemicals, acids, and solvents without corroding or degrading.

The material is also flame-retardant and self-extinguishing, making it a safe choice for applications that require fire resistance, such as in the construction industry, where it can be used for fire barriers and enclosures.

In addition to its superior performance, the Epoxy Glass Cloth Laminated Sheet is also easy to machine and fabricate, making it suitable for a wide range of applications. It can be easily cut, drilled, and punched into various shapes and sizes, depending on the specific requirements of the intended application.

The Epoxy Glass Cloth Laminated Sheet is available in various thicknesses, widths, and lengths, making it versatile enough to fit different needs. Customers can choose from standard sheet sizes or can have their sheets custom-made to suit their unique requirements.

At our manufacturing facility in China, we produce high-quality Epoxy Glass Cloth Laminated Sheet that meets the highest industry standards. We use state-of-the-art technology and materials to ensure that our products are of the highest quality and durability. Our team of skilled technicians is committed to providing superior products and customer service. We offer competitive pricing, timely delivery, and excellent customer support to ensure that our customers get the best value for their investment.

In conclusion, the Epoxy Glass Cloth Laminated Sheet is a high-performance material with superior insulating and mechanical properties. It is a perfect choice for a diverse range of applications, from electrical and mechanical insulation to structural applications. Our products are of the highest quality and backed by excellent customer service and support. Contact us today to learn more about our Epoxy Glass Cloth Laminated Sheet and how we can help support your business needs.

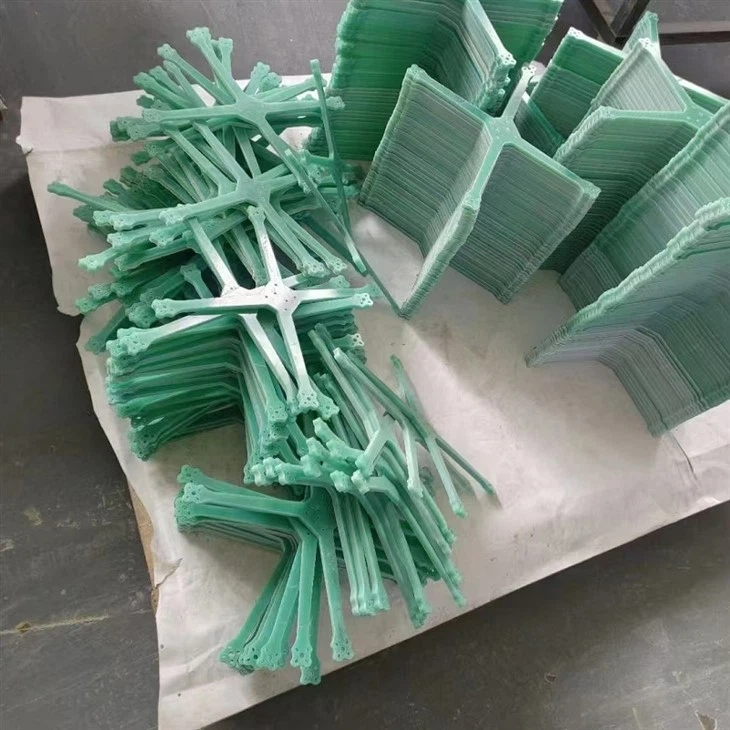

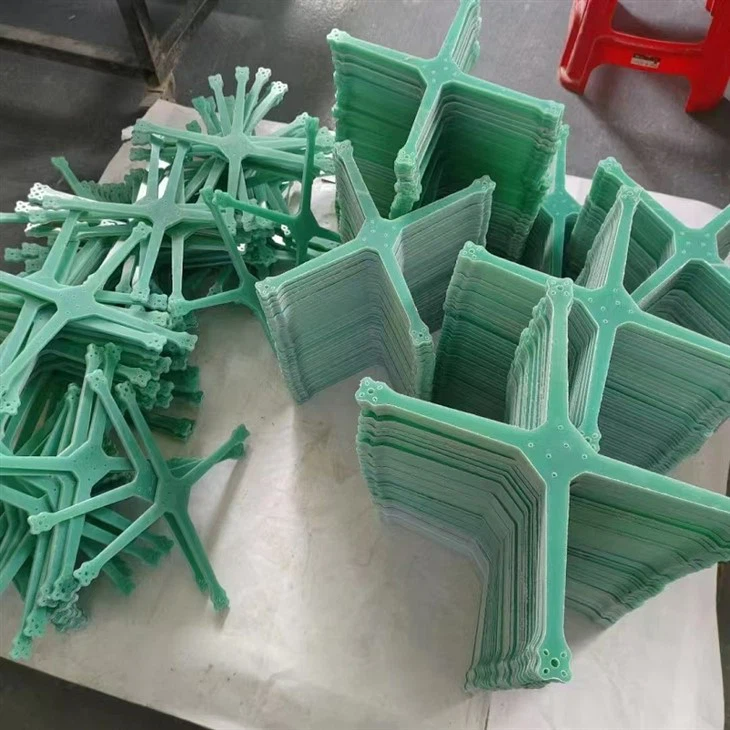

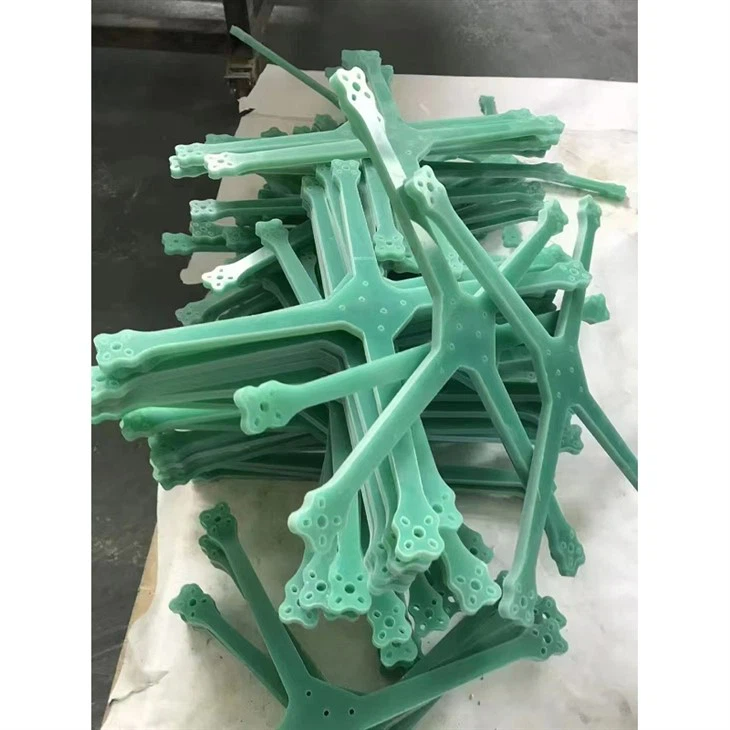

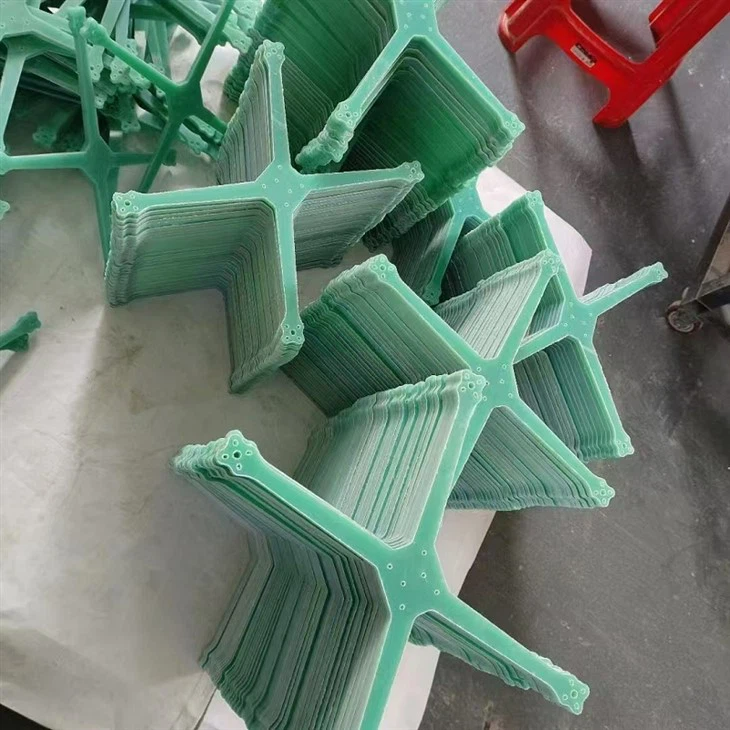

We not only produce insulating boards, but also can cut them into various sizes and process them into insulating parts of various shapes for customers. Our company has different types of CNC machines and grinding machines, which can make various high-precision insulating parts.

Product description

Typically, 3240 epoxy board can withstand temperatures between A and B. Below the typical temperature of 130 degrees, it has stronger mechanical characteristics, and both in the dry and wet states, its electrical performance is comparatively steady. It is an intermediate product in the field of insulating board and is utilized in the components of insulating structures in high and low voltage electrical, electronic, and other industries.

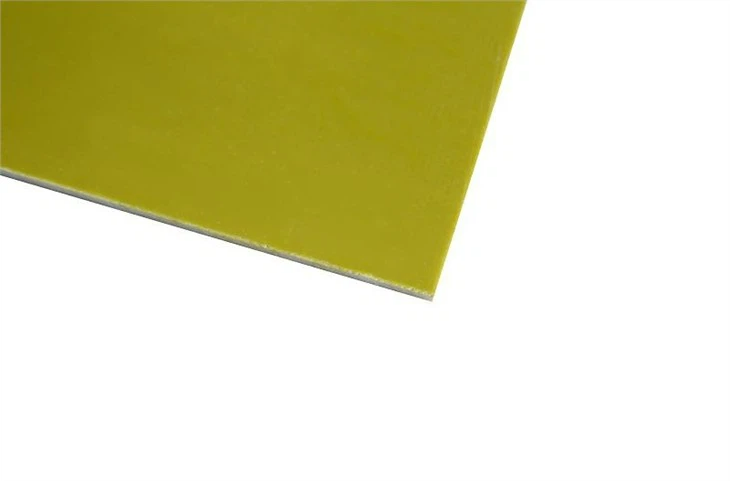

3240-A EPOXY GLASS CLOTH LAMINATE SHEET
Properties		Unit	Grade：3240-A
Flexural strength perpendicular to laminations (A: under normal conditions E-1/150: 150±5 °C)	≥	Mpa	320
Impact Strength parallel to laminations (Charpy)	≥	KJ/m2	33
Insulation Resistance after immersion in water (D-24/23)	≥	Ω	1.0×108
Dielectric strength perpendicular to laminations (in 90±2°C transformer oil)	≥	MV/m	14.2
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)	≥	KV	30
Water absorption (D-24/23, 1mm in thickness)	≤	mg	18
Permittivity (1 MHz)	≤	-	5.5
Dissipation factor (1 MHz)	≤	-	0.04
Flammability		Class	-
Density		g/cm3	(1.9-2)
Color		-	Natural



Standard size

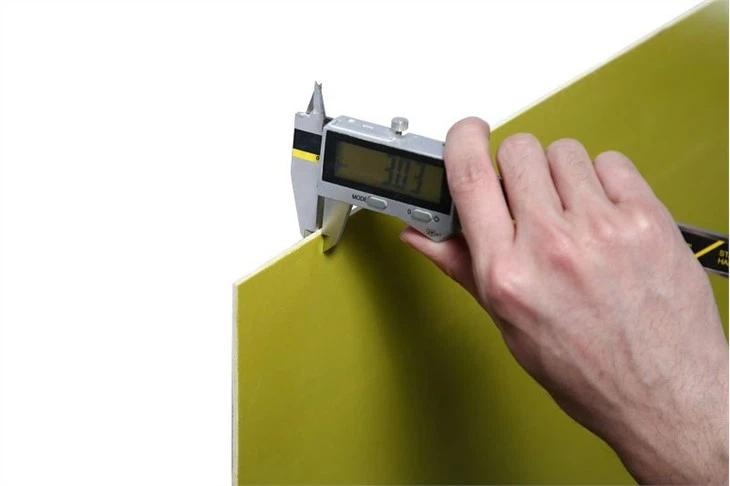

Thickness:0.5-120MM Length and Width:1020*2020MM,1220*2440MM,1220*1220MM

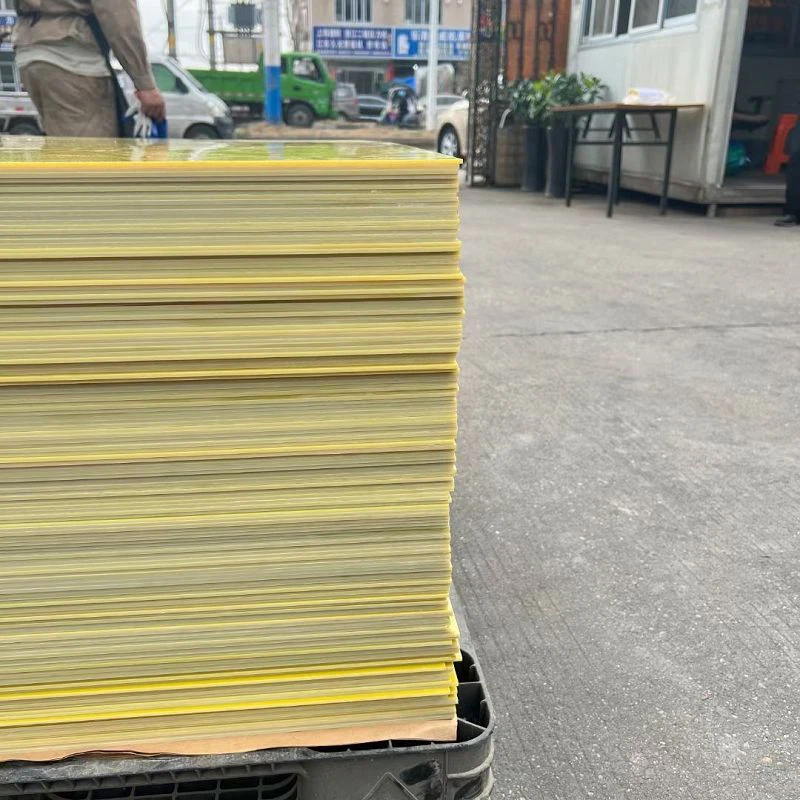

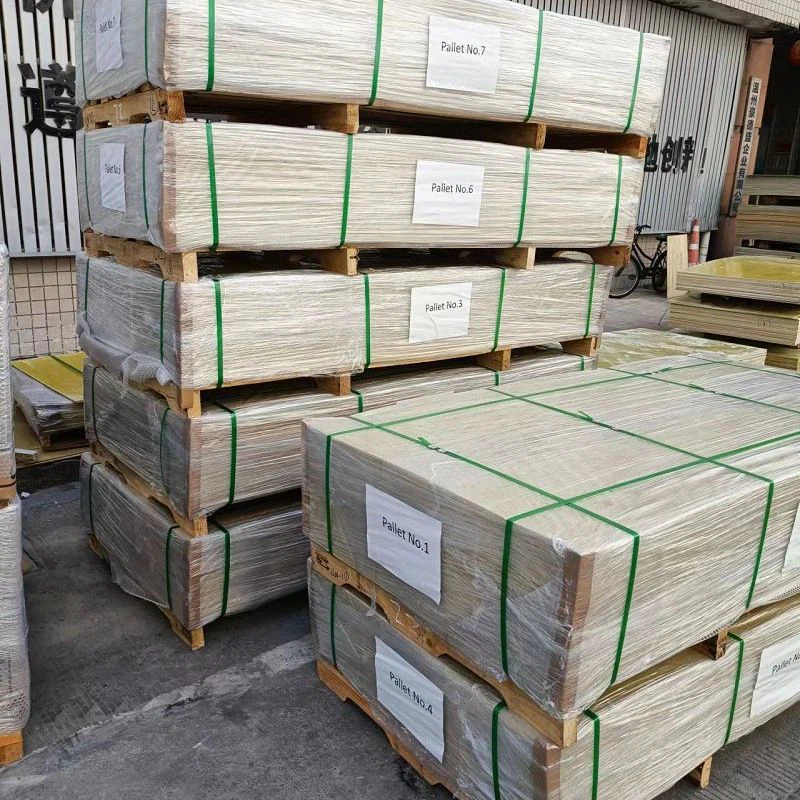

Package

Pallets or as customer's request.



Delivery

20-30days



Minimum order quantity requirement

500kgs



Applications

Used in mechanical, electrical and electronic insulation structure parts. Used in Chemical machine parts. Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor. Color:Yellow (Other colors can be customized) Density:1.9-2.15 g/cm3



The business was established in 1985. It has become a skilled integrated supplier of insulating materials after almost 30 years of unwavering work. It is a top manufacturer of insulating materials, offering comprehensive selections, cutting-edge machinery, and manufacturing and finishing integration. The technology is cutting-edge, and the production and testing equipment is first-rate. It has a 2000-ton CNC press, multiple CNC finishing center machines, an automatic dipping production line, as well as large-scale processing and production tools for sawing, turning, milling, planing, grinding, drilling, tapping, punching, and shearing.Timely data gathering, exact planned management, thorough monitoring, and increased labor efficiency: classification, comparison, and analysis of historical data allow for the prediction of market demand and an increase in warehouse operation efficiency.

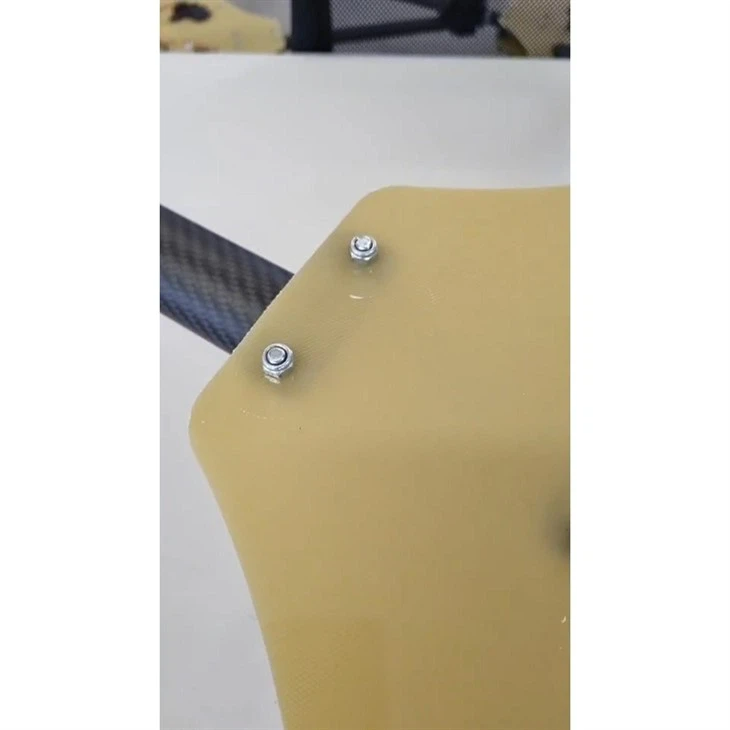

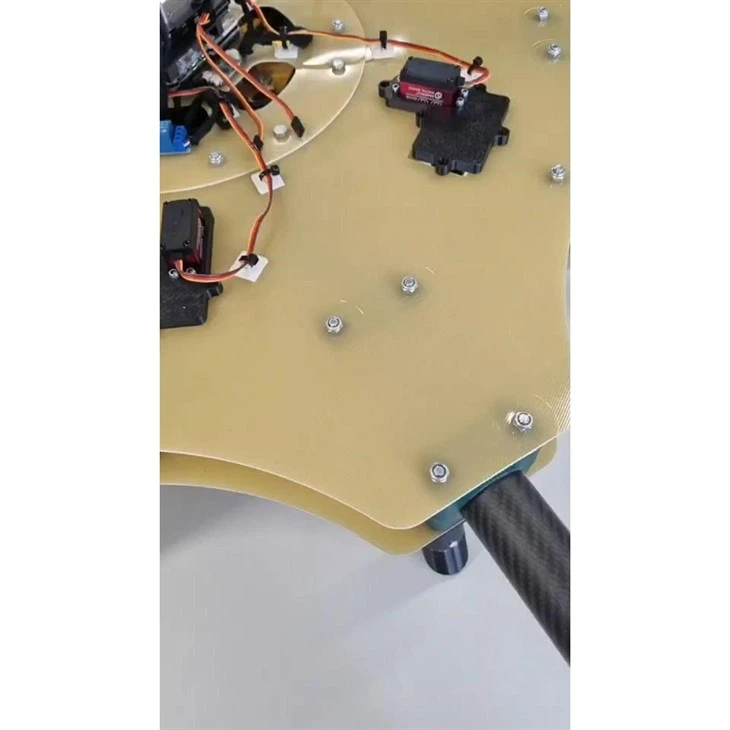

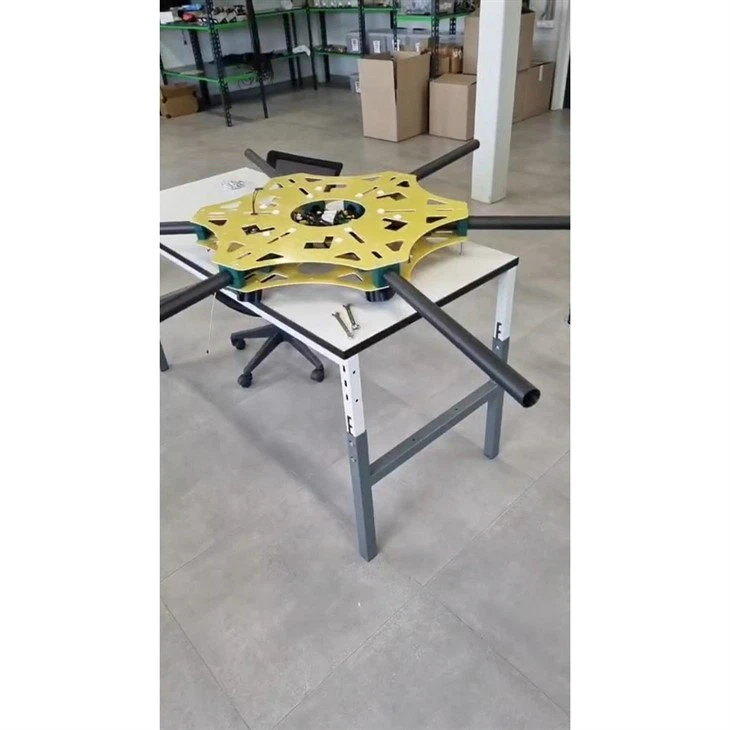

For drones, For UAV

Why choose us?

• Our Epoxy Boards are designed to provide long-lasting durability and performance.
• Our engineers with their rich experience and professional technology, can be in accordance with the needs of domestic and foreign customers to plan and find the best solution.
• Our team of experts ensures that every Epoxy Board we produce meets the highest standards of quality and performance.
• Since our establishment, we have been following the tenet of 'first-class service, first-class technology, first-class environment, first-class equipment' and established a complete quality management mechanism.
• Our Epoxy Boards are designed to withstand even the harshest conditions and environments.
• We are dedicated to technological research and development, total customer satisfaction and providing superior quality, high production, and profitable Epoxy Glass Cloth Laminated Sheet. We are your best friend and business partner forever.
• We have a strict quality control process in place to ensure that every Epoxy Board meets our high standards.
• We appreciate your enquiry and it's our honor to work with every friend worldwide.
• Our Epoxy Boards are resistant to chemicals, heat, and impact, ensuring they are suitable for a wide range of applications.
• Our company actively promotes the upgrading and transformation of the industrial structure, enhances our sense of innovation and brand awareness, adjusts our export structure, and strengthens the competitive advantage of our Epoxy Glass Cloth Laminated Sheet in the international market.
